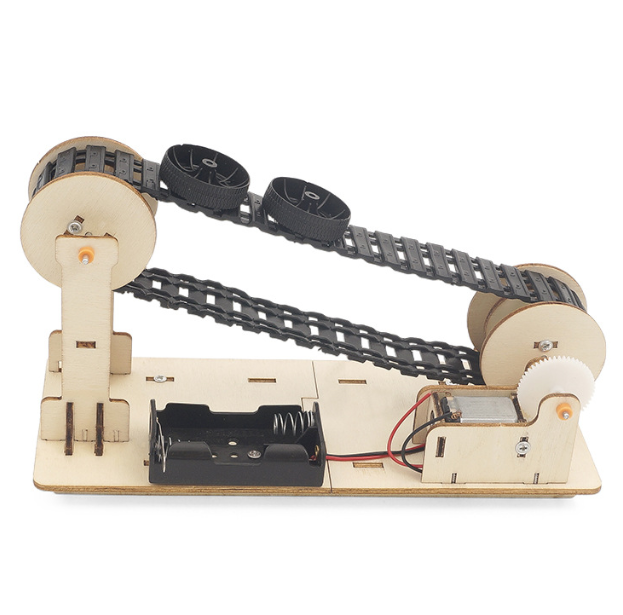

SwitchedOnToys – Conveyor Belt : A conveyor belt is a versatile mechanical device designed for transporting materials or goods efficiently from one location to another. This simple yet innovative system has revolutionized material handling across various industries, making it a cornerstone of cost-effective learning and practical engineering solutions.

How Conveyor Belts Work:

• Mechanical Design: The conveyor belt system consists of a continuous loop of material, typically made of fabric, rubber, or metal, that moves around a set of pulleys. The belt moves in a repetitive cycle, transporting items smoothly and reliably from the input to the output end.

• Efficiency and Versatility: Conveyor belts are known for their efficiency in handling materials, significantly reducing the manual effort required in various processes. They can be used in a wide range of applications, from manufacturing and packaging to mining and logistics, demonstrating their versatility in different settings.

Educational Value:

• STEM Learning: Building and studying a simple conveyor belt model provides hands-on experience with mechanical systems, illustrating how conveyors are used to transport items efficiently and how they can be integrated into larger automated systems.

• Hands-On Experience: Assembling a conveyor belt model helps students understand the mechanics of belt movement, gear systems, and the role of various components in the transport process. This practical approach makes complex concepts more accessible and engaging.

• Teaching Resources: Conveyor belt models serve as valuable teaching tools, highlighting the principles of mechanical engineering, automation, and material handling. They can also be used to explore concepts related to efficiency, speed, and load distribution.

• Innovative Design: Simple conveyor belt kits can demonstrate the fundamental concepts of mechanical transport systems, providing a cost-effective way to explore how conveyor belts have transformed material handling in various industries.

Overall, the conveyor belt model is an excellent educational resource that combines mechanical design with practical application, offering a clear demonstration of how conveyor systems improve efficiency and reduce labor in material handling.

Components of a Conveyor Belt System

• • Belt:

    • Function: The belt is a continuous loop that transports materials from one point to another.

    • Materials: Can be made from rubber, PVC, fabric, or metal, tailored to the specific needs of the application and the type of material being conveyed.

  • Rollers:

    • Role: Support and guide the belt, ensuring smooth movement along its path.

    • Design: Typically, cylindrical and spaced at regular intervals to reduce friction and support the weight of the belt and its load.

  • Pulley:

    • Types: Includes the drive pulley, powered by the motor to move the belt, and the idler pulley, which helps to guide the belt along its path.

    • Function: Pulleys have grooved surfaces to keep the belt aligned and maintain its tension.

  • Drive System:

    • Components: Consists of a motor and gearbox that provide the necessary power to drive the belt.

    • Operation: The motor turns the drive pulley, which in turn moves the belt and conveys the materials.

  • Frame:

    • Purpose: Provides structural support for the rollers, pulleys, and other components.

    • Material: Usually made from metal or sturdy plastic to ensure durability and stability.

  • Tensioning Device:

    • Function: Adjusts the belt tension to prevent slipping and ensure smooth operation.

    • Types: Can include manual or automatic systems depending on the design of the conveyor.

  • Belting Material:

    • Selection: Chosen based on the materials being conveyed and the operating environment.

    • Types: Commonly includes rubber, PVC, and metal mesh, each suited for different applications and conditions.

  Types of Conveyor Belts

  • Flat Belt Conveyor:

    • Design: Features a flat belt that moves materials in a straight line.

    • Usage: Ideal for transporting items of various shapes and sizes on a horizontal plane.

  • Inclined Belt Conveyor:

    • Design: Built to move materials up or down slopes.

    • Application: Useful in settings where elevation changes are needed, such as moving items between different levels.

  • Modular Belt Conveyor:

    • Construction: Composed of interlocking plastic segments.

    • Advantage: Highly adaptable, capable of handling irregularly shaped items and various configurations.

  • Cleated Belt Conveyor:

    • Feature: Equipped with vertical cleats or barriers to prevent materials from sliding backward.

    • Ideal For: Transporting materials on inclines where maintaining position is crucial.

  • Flexible Conveyor:

    • Design: Adjustable in length and configuration.

    • Use: Often employed for temporary setups or in areas with changing material handling needs.

  • Pipe Conveyor:

    • Structure: The belt forms a tube-like shape, enclosing the material during transport.

    • Benefits: Protects materials from external conditions and is suitable for long-distance or challenging terrain.

  Advantages of Conveyor Belts

  • Efficiency:

    • Performance: Capable of moving large volumes of materials quickly and continuously.

    • Impact: Enhances operational efficiency by reducing handling time and labour.

  • Reduced Labour Costs:

    • Automation: Minimizes the need for manual labour by automating material handling processes.

    • Cost Savings: Leads to significant reductions in labour expenses.

  • Versatility:

    • Design Options: Can be customized for various applications, including diverse material types and complex routing requirements.

    • Adaptability: Suitable for a wide range of industries and material handling needs.

  • Consistency:

    • Reliability: Provides steady and dependable transport of materials.

    • Quality Control: Reduces errors and improves overall quality by maintaining uniform operation.

  • Safety:

    • Risk Reduction: Decreases manual handling, lowering the risk of workplace injuries.

    • Workplace Safety: Enhances safety by minimizing physical strain and potential hazards.

  Applications of Conveyor Belts

  • Manufacturing:

    • Use: Essential for assembly lines, packaging processes, and material handling in production environments.

  • Mining:

    • Function: Transports mined materials such as coal, ore, and gravel from extraction points to processing areas.

  • Food Processing:

    • Role: Moves food products through various stages of processing, packaging, and quality control.

  • Logistics and Warehousing:

    • Application: Facilitates efficient movement of goods within warehouses and distribution centres, streamlining logistics operations.

  • Airport Baggage Handling:

    • Purpose: Manages the transportation of luggage and cargo throughout airport terminals, enhancing efficiency and organization.

  • Recycling:

    • Use: Employed to sort and transport recyclable materials, aiding in waste management and material recovery processes.
